Primary Packaging
Flow Wrap Machine – Dual Lane

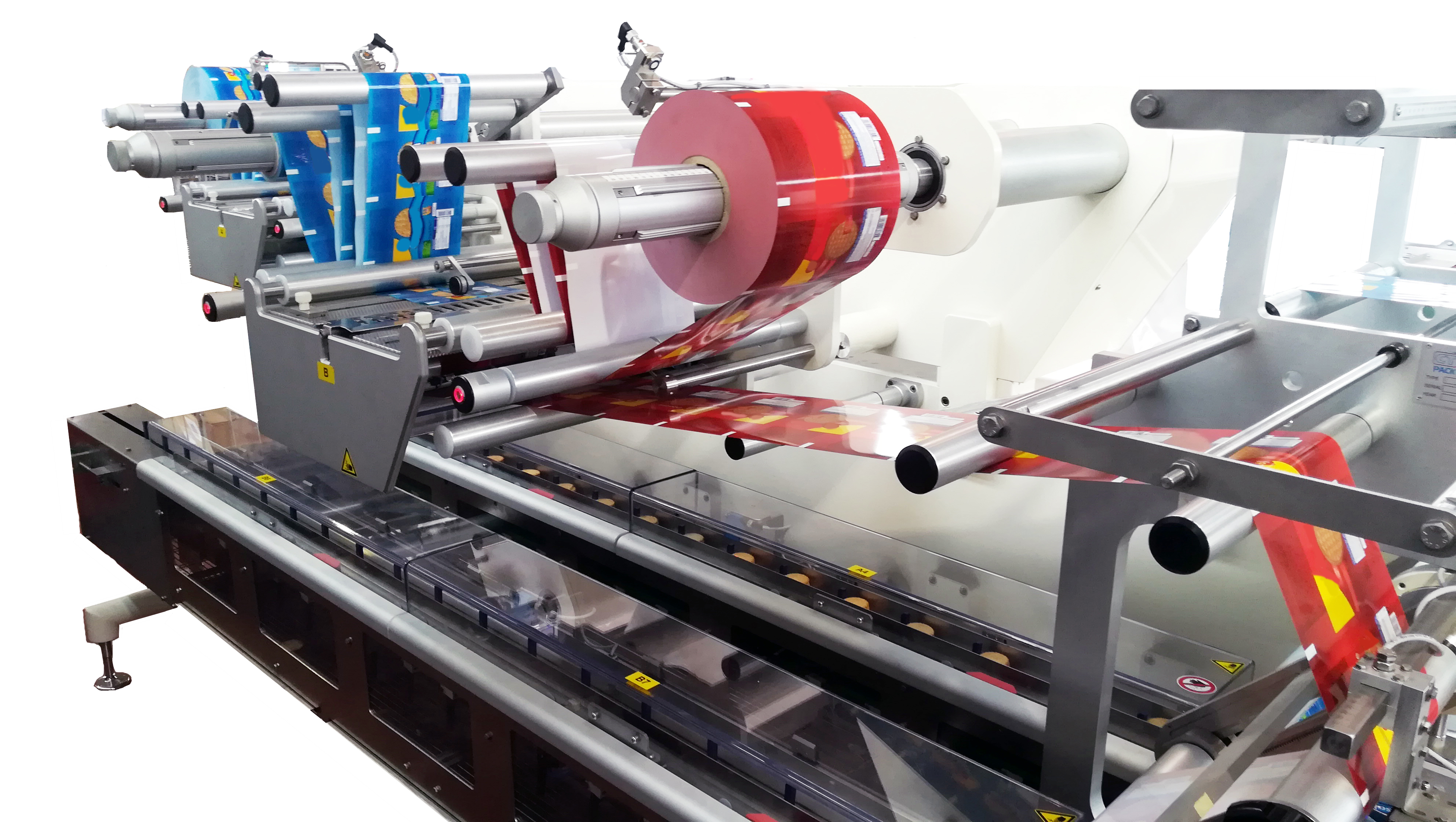

Dual Lane Horizontal Flow Wrapping Machine M02
M02 is a fully electronic Dual Lane horizontal flow wrapping machine
Each lane is fully independent to share the product’s flow in two wrapping legs or to use the second leg as a standby lane.
This allows a very compact footprint. Two units can be positioned in mirrored configuration to allow only one operator to serve 4 wrapping legs.
Reel width: max 390 mm
Reel diameter: max 400 mm
120
meters/min (for each row)
2
Fully Independent Lanes on same frame
MAIN FEATURES
- Cantilever construction
- Machine speed control by PLC
- Maximum flexibility
- Double reel holder with auto splicer
- Easy locking of the reels on the reel holder
- Cold and Heat sealing
- Empty/double bags rejection (no product/no bag available)
AVAILABLE OPTIONS
- Customized infeed system
- Mechanical or pneumatic gusseting
- Motorized unwinding system for film
- No product / No bag function
- Carton insertion system
- Code dater predisposition (ink-jet or laser)
- Cooling system for chocolate application
- Gas flushing
- Box motion sealing head available
HYGIENIC REQUIREMENTS
- Frame in painted steel or stainless steel according to user’s needs
- Enhanced accessibility to the various parts of the machine
- All parts in contact with product are FDA approved
